INDIANA DUNES N.P. INDIANA

 GOOD  EVENING  EVERYONE !!
  Hope everyone is Happy & healthy today! We did this install at Indiana Dunes National Park on July 28th. This is the William's Install on a Motor Home

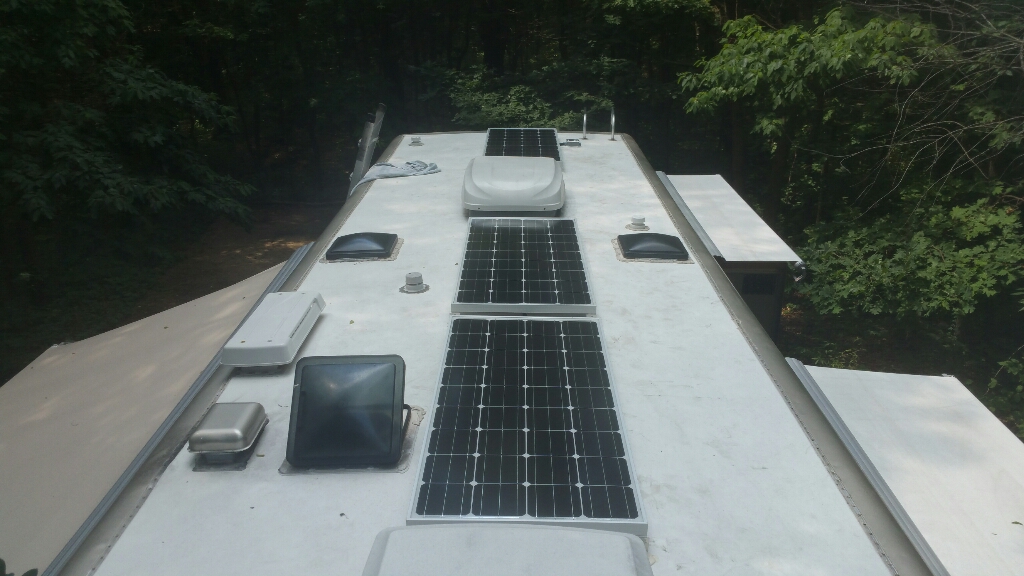

Here we have (3) 160 watt solar panels on tilt mounts. These panels were placed in the middle
so as to be able to add future panels on the drivers side flat mounted.


Junction Box. Each panel is wired individually on #8 wire. #6 wire was used from box to controller
and to batteries. This install was unique as the controller is 5 ft. below box in closet & batteries are
3 ft. below controller.

This is a Renogy (Tracer) 30 amp Controller With a Solar Array Disconnect Switch.

We are off to Port Huron, Michigan for our next install,

SEE  YOU  DOWN  THE  ROAD !!
