GRAY, TENNESSEE #2

WELCOME!!
THIS IS OUR SECOND INSTALL HERE AT THE FAIRGROUNDS
Sept. 7th 2016

This is the Haywood Install. Here we installed (4) 160 watt Solar Panels, 30/24i MPPT Blue Sky Controller with IPN Pro Remote, Solar Disconnect Switch, (4) 6-volt V-Max AGM Batteries, and a 3000 watt Inverter ( outlets only)

This is the Blue Sky Controller & Disconnect Switch
Wired with #2 wire

This is the Backside of the Coach. Panels were placed away from air conditioners so as to be able to tilt in either direction

This is looking towards the front of the coach

All wires are #8 running separately from each panel. All wires on roof are in Auto Loom to protect wire from UV rays. All panel Mounts are glued down (E-6000) screwed & Dicor on top of mount to Seal

This is the 3000 Inverter. This inverter cannot be Hardwired to system. It has 4 ac outlets on front. We run 14/2 Romax (15A) into kitchen wall that was accessible & put in a wall outlet. Inverter side has a Male ac plug. Now customer can use that outlet on inverter for his coffee machine. There is also a 1000 watt Stock inverter that runs entertainment center. A 400A T-Fuse installed with inverter.

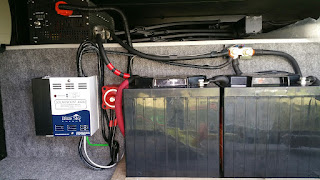

A look at the Bay. (2) V-Max 6-volt Batteries AGM, 30/24i Blue Sky Controller, Disconnect Switch & Shunt

Combiner Box (12v System)
#2 wires run down outside of vent pipe

(2) V-Max 6-volt AGM batteries installed in front bay.

(2) V-Max 6-volt Batteries under step. Other 2 batteries in forward bay. 4/0 wire installed to connect batteries. 50A resettable circuit breaker installed for Solar ( front right)

A Big Thank You to Don for helping me during install!!
And a Big Thank You to Faith for the Awesome Chicken Salad & Cheesecake!!

Our Next install is in Collierville, Tennessee on the 22nd
Time for some rest and Exploring!!
And as always.......
SEE YOU DOWN THE ROAD!!
