MAGNUM ENERGY / ACCESSORIES

MAGNUM  PT-100 AMP  CHARGE CONTROLLER

MPPT Maximum Power Point Tracking technology for increased PV power output efficiency. Multi-state Charging: Maximizes system performance and improves battery life. Optimal Battery Charging: Maximizes system performance and improves battery life. Voltage Options: Compatible with 12, 24, or 48V battery systems with automatic detection of system voltage. GFDI: Integrated PV Ground- Fault Detection and Interruption/ Indication, with pre-fault leakage/ diagnostic metering. Extensive Electronic Protection: Over-temperature protection, power derating when temperature is high, PV short circuit and high PV input shutdown, output overcurrent protection and night-time back-feed (reverse current) protection. Support a Large PV Array: A single controller supports a large PV array up to 6600W. High Efficiency: The PT-100 provides higher than 99% conversion efficiency and uses less than two watts of power in nighttime mode.

LED Indicators and Screen AFCI: An integrated PV Arc-Fault Circuit Interrupter detects, indicates, and extinguishes series arcs. The AFCI is designed to meet the new National Electric Code (NEC) Article 690.11 requirements. Convenient Installation: Run all of the wiring to the unique, remain-inplace wiring box with ease prior to installing the full PT-100 unit. On-site Updates: The PT-100’s software can be updated on site. Easy MP and MMP integration: The PT-100 is designed to work with a Magnum Panel (MP) or Mini- Magnum Panel (MMP). It provides room and access to PV and battery disconnect breakers.

                                                        MagWeb Monitoring Kit

ME-MW-W (Wireless) or ME-MW-E (ethernet)

The MagWeb is a powerful and cost effective tool for remotely monitoring Magnum Energy’s inverters and accessories. Installed on the Magnum network, the MagWeb provides live Internet monitoring of the inverter, battery monitor, and automatic generator start module. Using your always on Internet connection, the MagWeb makes live and historical conditions available to you through a web browser at data.magnumenergy.com. Data Samples The MagWeb constantly streams data to your personal web pages, providing details on Current Conditions, Current Settings, and Daily Summaries for historical records. Monitoring includes:Inverter/Charger:  Status Program settings Faults DC volts, DC amps Invert, charge LEDs Tech menus Battery Monitor status Auto Gen Start (AGS) status

ME-BMK

MAGNUM  BATTERY  MONITOR  KIT The ME-BMK/ME-BMK-NS is a single battery bank amp-hour meter that monitors and provides important information about the condition of the battery. This information will let you know how much energy you have available, and let you plan your electrical usage to ensure the battery is not being over-discharged. The ME-BMK is easy to install and is designed to be networked with a Magnum Energy inverter/charger using a remote (ME-RC50 or ME-ARC50) or router (ME-RTR) to display  information about your battery bank.

ME-ARC

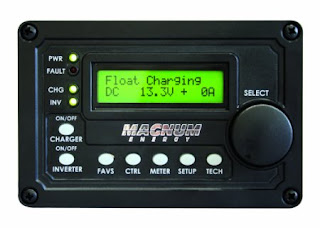

                                            MAGNUM  ME-ARC50  REMOTE

This advanced feature remote offers the same simple push button operation of the ME-RC with advanced features and setup menus. The ME-ARC features a Favs button for storing up to five of your favorite setup menus, a Control button for fast easy control of the inverter, charger, and generator, meter button with AC and DC meters, advanced setup menus, and advanced tech menus.

                                                AUTOMATIC  GENERATOR  START

ME-AGS-N

Imagine being able to enjoy a day away all-the-while knowing your living space will stay cool and comfortable and your batteries will stay charged and ready for all of the activities that make up daily life. There’s nothing better than returning to a nice, cool, comfortable home with charged batteries after a day away. The Magnum Auto Gen Start (AGS) can make this happen. The Magnum AGS is compatible with most major generators, including Onan, Powertech, Generac, Westerbeke, Kohler, EPS, Northern Lights, and most portable generators with electric start. Please check with your Magnum dealer for specific model compatibility. THESE MAGNUM PRODUCTS CAN BE PURCHASED HERE ON THE BLOG
