We are back on the Road for the Summer Season!

This is the 1st job of the summer with the Miller Install here in Cave Creek, Arizona
                                                  April 24th & 25th 2017

Here we installed (4) 165 watt Solar Panels on Tilt mounts, (1) 30/24i MPPT Blue Sky Controller with IPN Pro Remote, 2800 Watt Magnum Pure Sine Inverter, ME-ARC50 Remote & Sub Panel, (4) 6 volt AGM Full River Batteries.

This install was unique in that we installed under that canopy behind trailer. Very Hot that day. Trailer was pulled out to check system.

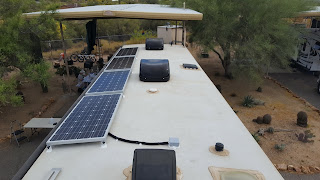

(4) 165 watt panels on Tilt mounts. These panels were placed opposite the refrigerator, so as to keep refer out of the sun ( north side )

Junction Box as well as roof plate

Magnum 2800 Watt Pure Sine inverter.
T-Fuse 400A above it.  Shunt Below it.
30/24i MPPT controller beside it,
and 50A resettable Circuit Breaker

Blue Sky 30/24i MPPT Solar Charge Controller
& Solar Disconnect Switch

(4) 6 volt AGM Full River Batteries
Maintenance Free

Used for IPN Pro Remote
Battery Monitor

Front Compartment
Complete Boondockers System!!

Sub Panel
All outlets are in sub panel that run through inverter
Everything else remains in Main Panel

No Wires
Clean Install

All Products on this install can be Purchased on this Blog.
Thank you for Visiting & Shopping Here!!
Much Appreciated!!
